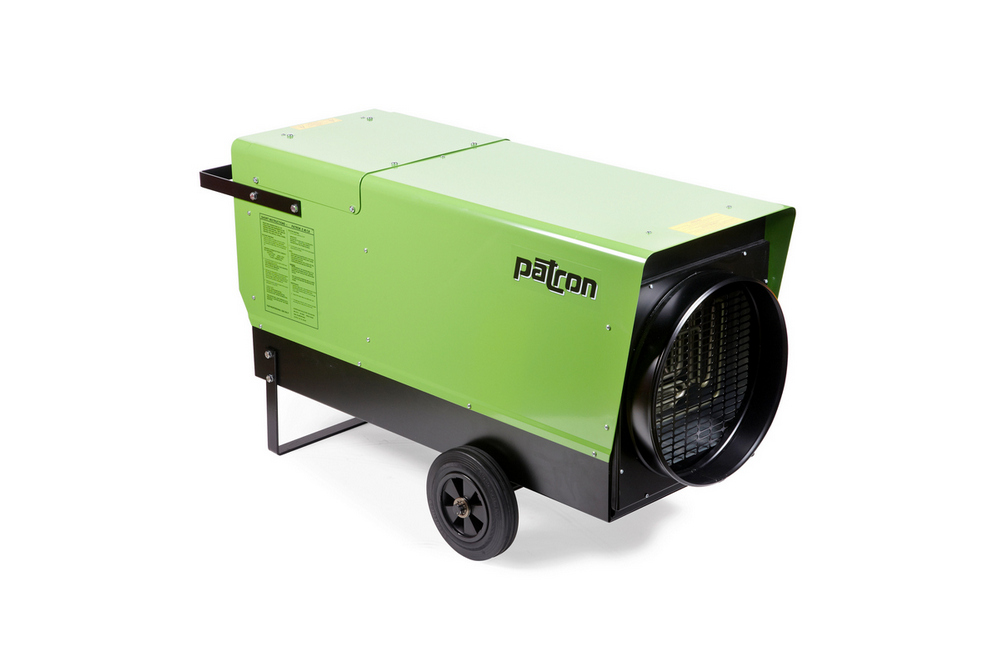

PATRON 480V,60KW,3 PHASE ELECTRIC HEATER

ITEM # PA-60E

PRICE: 6550.95

For product information please call:

1-866-887-3650



The Patron 60E is an electric powerhouse in any demanding application. Suitable for a magnitude of situations, it will endure the harshest of applications, all while pumping out over 136,000 btu/hr. It features transport wheels and a rear lifting handle, making it extremely portable, as well as a 14? duct adapter for areas and sites in need of specific heat distribution. The 60E runs off 3-phase 480V power and pulls 75 amps. It produces hot, clean air and blows it over a very large area with a powerful 1765 cfm fan.


Features:

  • For heating, drying, and ventilating
  • Integrated ambient thermostat from 32 deg F - 100 deg F
  • Overheat protection at 104 deg F
  • Durable steel casing with powder coating
  • Stainless jacketed heating coils
  • Fast, high temperature rise with uni-directional fan
  • User-friendly and proven reliability
  • 14? duct ring
  • Transport wheels and rear lifting handle

  • BTU/Hr - 205,000
  • Watts - 60,000
  • Volts / Amps - 480V / 75A
  • Phase - 3PH
  • Modes - 24kW / 30A / 82,000 BTU/Hr, 48kW / 60A / 164,000 BTU/Hr, 60kW / 75A / 205,000 BTU/Hr
  • Thermostat - 32 deg F - 100 deg F
  • Airflow - 1,765 CFM
  • Weight - 125 LBS
  • L x W x H - 46" x 20" x 25"
  • Power Cord - Not Supplied
  • Plug Type - Not Supplied
  • Decibel Rating - 82 dB(A) 1m
  • Max Cord Length - 50-ft (2AWG, 4-wire, SOOW)
