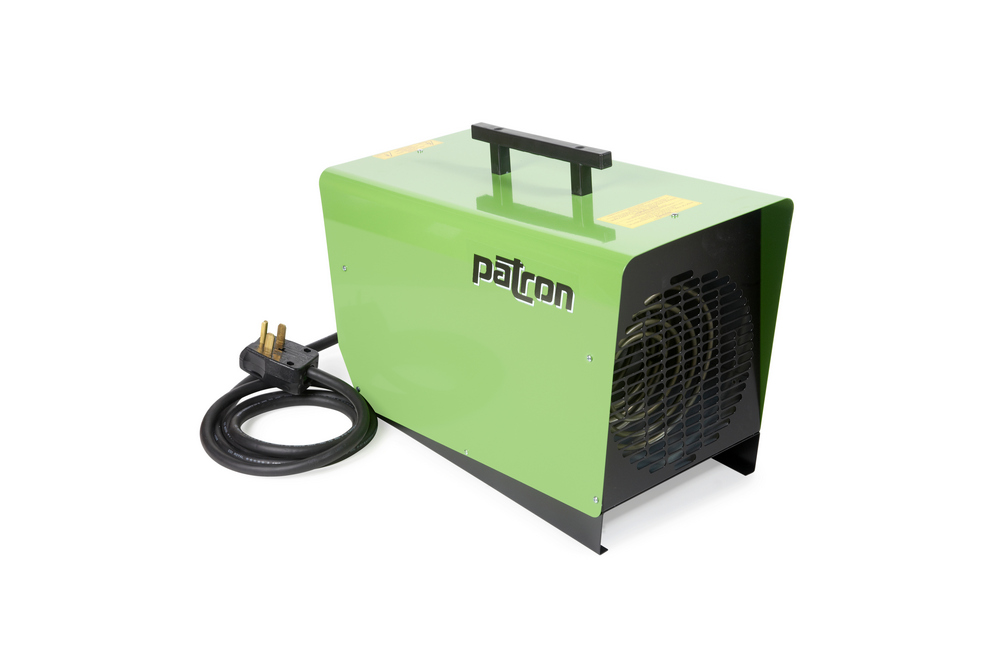

PATRON E9 240V, 6/9KW ELECTRIC HEATER

ITEM # PA-E9

PRICE: 965.95

For product information please call:

1-866-887-3650


The Patron E9 is a top seller which exceeds expectations on a regular basis. It can be used in the most demanding of environments and has proven its abilities in hundreds of applications. The E9D is a 240V unit and pulls 25-37.5 amps. This means it will run flawlessly off a household dryer or stove receptacle. Make sure your receptacle is a NEMA 14-30P or 14-50P configuration, to ensure compatibility with our plug. The E9 produces a ton of heat, and disperses it in large areas with its 350 CFM fan.

Features:

  • Toggle switch allows switching between 6 and 9 kW output
  • For heating, drying, and ventilating
  • Integrated ambient thermostat from 32F-100F
  • Overheat protection at 104F
  • Durable steel casing with powder coating
  • Stainless jacketed heating coils
  • Fast, high temperature rise with uni-directional fan
  • User-friendly and proven reliability
  • Works on 208V
  • Plugs directly into a standard stove outlet


  • BTU/Hr - 20,500 / 30,700
  • Watts - 6,000 / 9,000
  • Volts / Amps - 230V / 25/37.5A
  • Phase - 1PH
  • Thermostat - 32F - 100F
  • Airflow - 350 CFM
  • Weight - 39.9 LBS
  • L x W x H - 23" x 14" x 18"
  • Power Cord - 10' (8 AWG)
  • Plug Type - NEMA 14-30p/14-50P
  • Decibel Rating - 55 dB(A) 1m
  • Max Cord Length - 50-ft (8AWG, 3-wire, SOOW), 100-ft (6AWG, 3-wire, SOOW)
