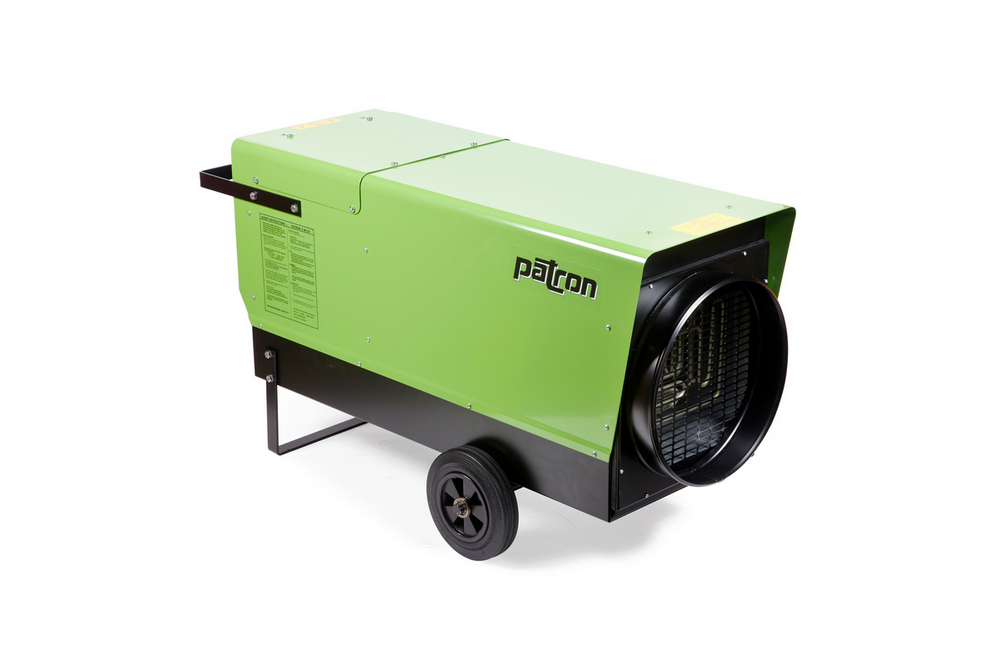

The Patron 40ECA is an electric powerhouse in any demanding application. Suitable for a magnitude of situations, it will endure the harshest of applications, all while pumping out over 136,000 btu/hr. It features transport wheels and a rear lifting handle, making it extremely portable, as well as a 14" duct adapter for areas and sites in need of specific heat distribution. The 40ECA runs off 3-phase 575V power and pulls 41 amps. It produces hot, clean air and blows it over a very large area with a powerful 1765 cfm fan.
Features:
- For heating, drying, and ventilating
- Integrated ambient thermostat from 32 deg F - 100 deg F
- Overheat protection at 104 deg F
- Durable steel casing with powder coating
- Stainless jacketed heating coils
- Fast, high temperature rise with uni-directional fan
- User-friendly and proven reliability
- 14" duct ring
- Transport wheels and rear lifting handle
- UL Approved
- BTU/Hr - 136,500
- Watts - 40,000
- Volts / Amps - 575V / 41A
- Phase - 3PH
- Modes - 16kW / 17A / 51,200 BTU/Hr, 32kW / 33A / 102,400 BTU/Hr, 40kW / 41A / 136,500 BTU/Hr
- Thermostat - 32 deg F - 100 deg F
- Airflow - 1,765 CFM
- Weight - 125 LBS
- L x W x H - 46" x 20" x 25"
- Power Cord - Not Supplied
- Plug Type - Not Supplied
- Decibel Rating - 82 dB(A) 1m
- Max Cord Length - 50-ft (6AWG, 4-wire, SOOW), 100-ft (4AWG, 4-wire, SOOW)
